Exposure System using Long Arc Lamp

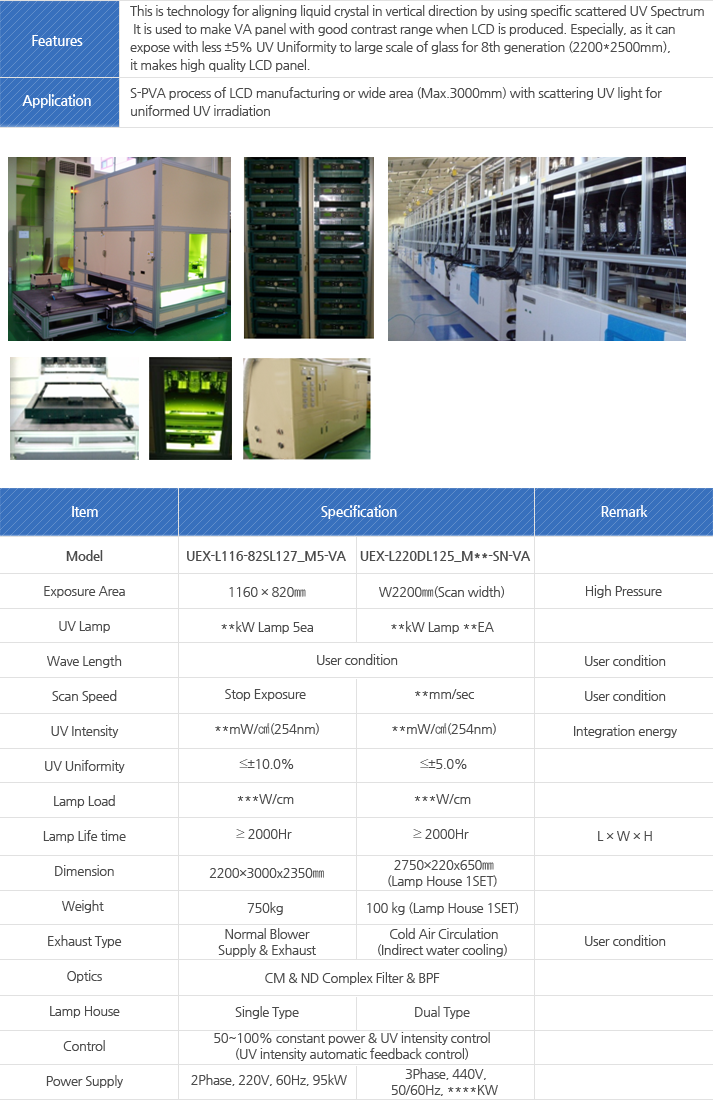

UV exposure system for LCD S-PVA

Model : Exposure Area, UV Lamp, Wave Length, Scan Speed, UV Intensity, UV Uniformity, Lamp Load, Lamp Life time, Dimension, Weight, Exhaust Type, Optics, Lamp House, Control, Power Supply

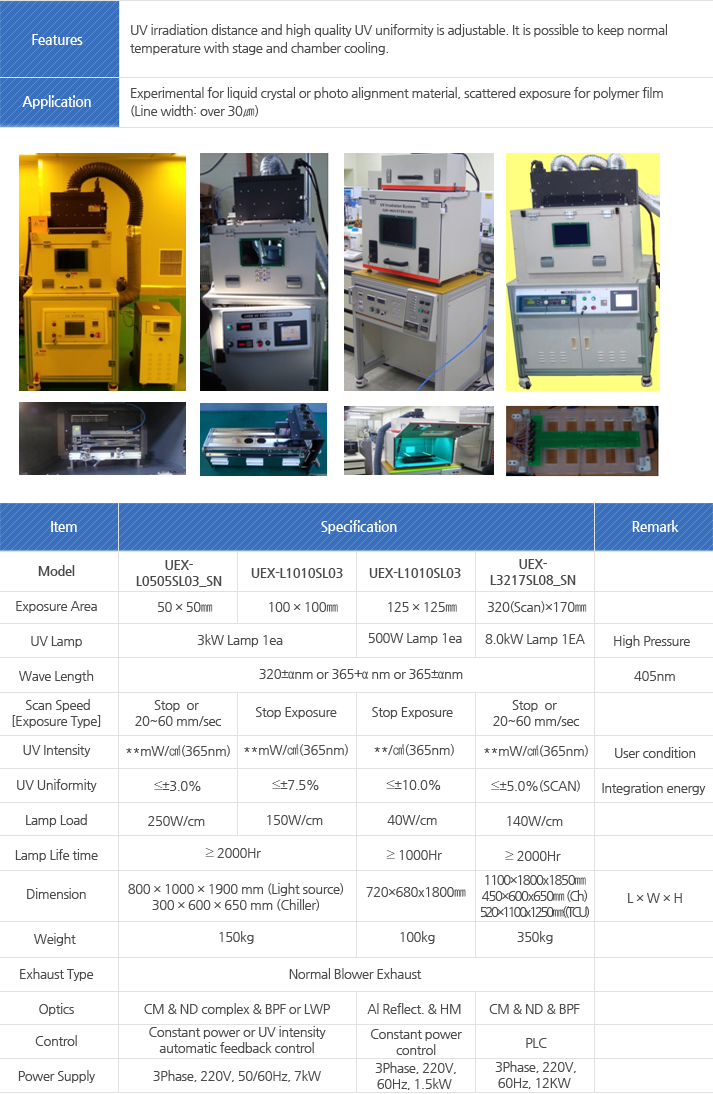

UV exposure and irradiation system for LAB

Model : Exposure Area, UV Lamp, Wave Length, Scan Speed[Exposure Type], UV Intensity, UV Uniformity, Lamp Load, Lamp Life time, Dimension, Weight, Exhaust Type, Optics, Control, Power Supply

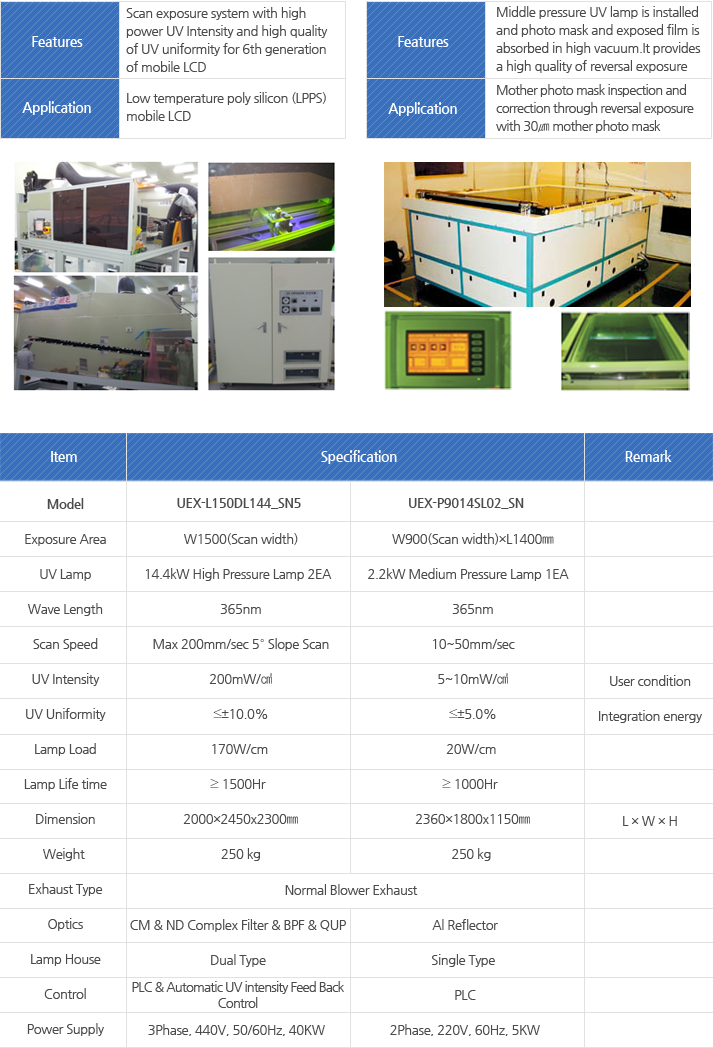

UV exposure system for LTPS LCD

Reversal UV scan exposure system for Photo mask

Model : Exposure Area, UV Lamp, Wave Length, Scan Speed, UV Intensity, UV Uniformity, Lamp Load, Lamp Life time, Dimension, Weight, Exhaust Type, Optics, Lamp House, Control, Power Supply
