Features & Benefits

• ▪ Mercury Free

  - Environmental Friendly
• ▪ Effective Germicidal Wavelength (Peak at 222nm)
• ▪ More Effective Reduction of Viruses, Bacteria, and Spores than 254nm
• ▪ Wide Operating Temperature

  (Not affected by ambient temperature)
• ▪ Instant On/Off at Full Output Power
• ▪ Various Product Lineup

  (12~40W, 100W, 240W and more)

Applications

• ▪ Air / Surface / Water Disinfection

Safe 222

TM

, UNILAM EXCIMER LAMP SERIES

It is well-known that the radiant power of general
mercury lamps (Low pressure mercury lamp) is very
sensitive to ambient thermal changes.

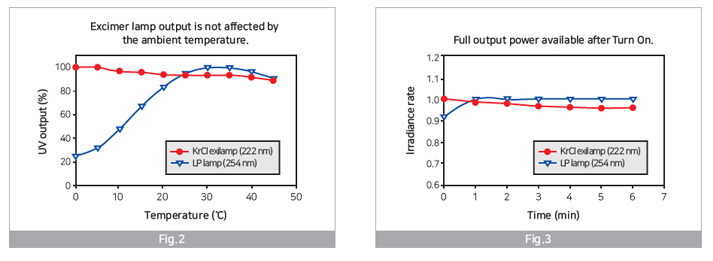

Fig.2 shows the temperature stability of a Unilam
Safe 222 TM excimer lamp compared
to that of a low pressure mercury Lamp (LP lamp)

Unilam Safe 222 TM Excimer lamp needs no warm-up
time and radiant power was maintained within a range
of 96% to 100%, while conventional germicidal UVC lamp

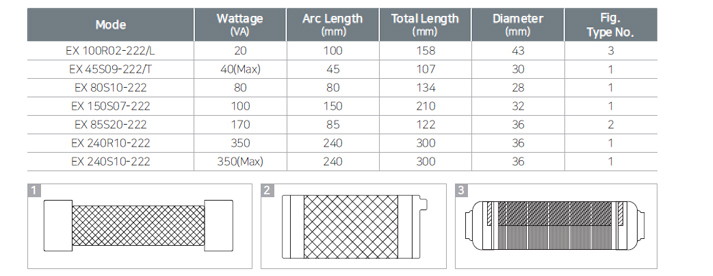

LAMP SPECIFICATION

Warning

• * Do not touch bulb with bare hands.
• * When handling the module, be sure to wear protective gloves.
• * Never touch the module when it is on, or soon after it has been turned off, as it is hot and may cause burns.
• * When you operate lamp, please follow detailed safety instructions provided by Unilam.
• * FDA disclaimer – Food and drug administration statement. This is not evaluated by the U.S Food and Drug Administration.
     This product is not intended to diagnose, treat, cure or prevent any disease.
